Your first analysis
This walks a single sample from file to exported numbers. It assumes you have installed the app and have either a trial or a license — viewing works without one, but gating does not.
1. Open a file
Section titled “1. Open a file”File → Open File, or drag an FCS file onto the window.

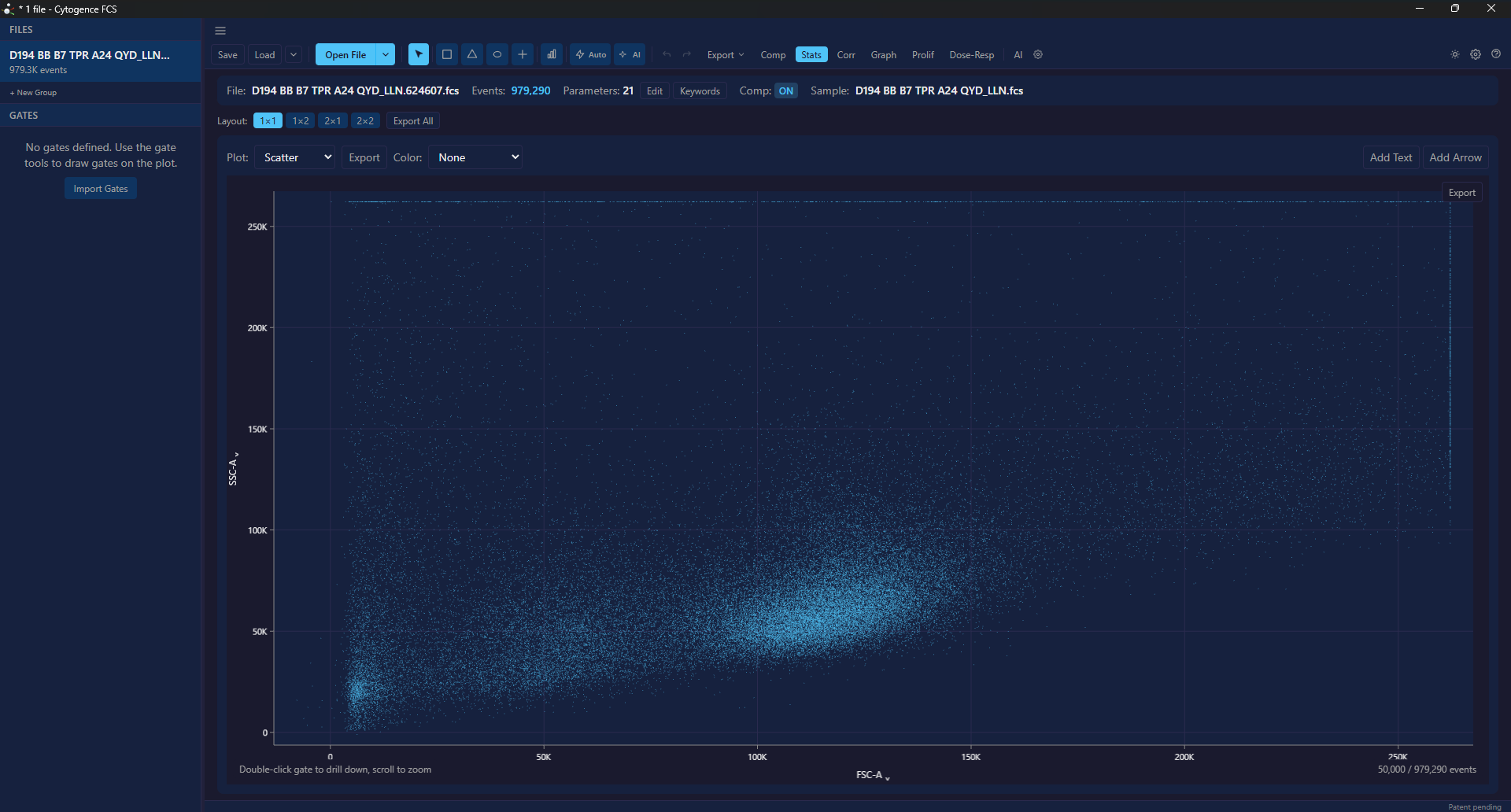

The file appears in the file list on the left, and the app picks a starting pair of axes. Large files are fine: a million events is normal, and takes roughly a minute and a half to load and process on a typical laptop.
2. Check the axes and the scale
Section titled “2. Check the axes and the scale”Click either axis label to choose a parameter. Next to the parameter you choose a scale — and for fluorescence channels the right answer is almost never linear.
The app suggests a scale per channel. If a population is smeared against the axis or piled up at zero, the scale is wrong before the gate is wrong. See Scales and transforms.
3. Compensate, if you have controls
Section titled “3. Compensate, if you have controls”If your panel needs compensation and the spillover matrix is in the FCS file, it is already available. If you have single-stain controls, the app can compute the matrix from them.
Skip this for a first pass on a single-colour or scatter-only look. See Compensation.
4. Draw your first gate
Section titled “4. Draw your first gate”Pick a gate tool from the gating toolbar — rectangle is the easiest to start with — and drag it around the population you want.
The gate appears in the gate list with its statistics. Draw the hygiene gates first, in the order a cytometrist expects: scatter to exclude debris, then singlets, then live cells.
5. Build a hierarchy
Section titled “5. Build a hierarchy”Double-click a gate to drill into it. The plot now shows only the events inside that gate, and any gate you draw is a child of it. Escape navigates back up.
This is what makes the statistics mean what you expect: a child population’s frequency is a percentage of its parent, and the breadcrumb above the plot shows you which parent you are in.
6. Let the AI propose the rest — optional
Section titled “6. Let the AI propose the rest — optional”Two different options, documented separately because they behave differently:
- AI-1 identifies a fixed list of immune populations on your machine, and declines the ones it cannot identify rather than guessing.
- The AI copilot takes a plain-language request (“gate CD4 T cell memory subsets”) and proposes a full strategy, step by step, for you to approve.
Neither applies anything without your click.
7. Read the statistics
Section titled “7. Read the statistics”The statistics table lists each population with its count and frequency, plus per-channel statistics. It updates as you move gates — adjust a boundary and the numbers follow.
See Statistics for what each column means and, importantly, what each percentage is a percentage of.
8. Export
Section titled “8. Export”- Statistics as CSV for your own analysis.
- Events as CSV, for all events or for one gate.
- Figures as SVG, PDF or PNG.
See Exporting.
9. Save the workspace
Section titled “9. Save the workspace”Ctrl+S saves gates, compensation, axes and layout — not a copy of your data, a reference to it. Reopening restores the analysis.
If the FCS files have moved since you saved, the app asks you to relocate them rather than failing. See Workspaces.
